- 4.0MP AHD CAMERA
- Adopt 4.0 megapixels CMOS sensor
- Support AHD signal output
- Support control OSD menu via Coax
- Support over 500 meters coaxial cable transmission
- Support day and night mode switch
عربي

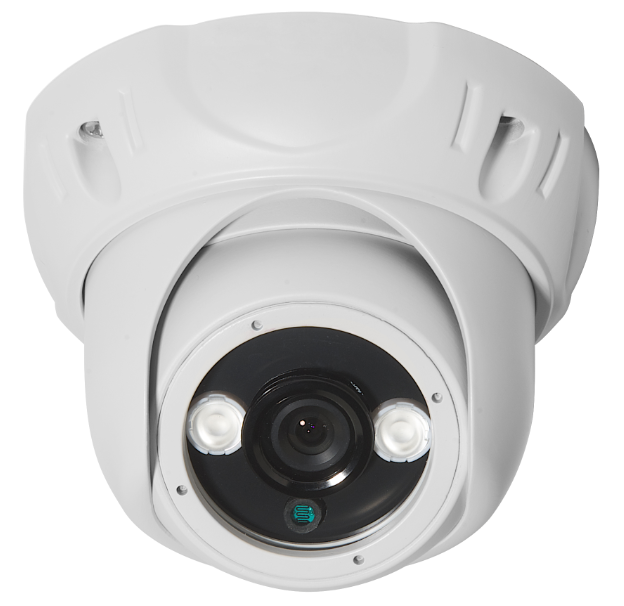

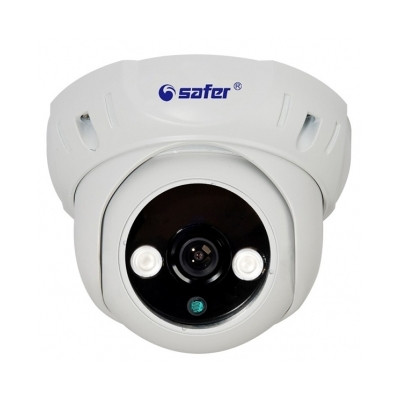

AHD, fixed lens 4.0MP (SF-AHD64DIRZ-2-ICR-V4)
AHD, fixed lens 4.0MP (SF-AHD64DIRZ-2-ICR-V4)
- Brand: SHENZHEN SFCAM TECHNOLOGY CO.,LTD
- Country of Origin: China
- Category: Surveillance System, Dome
- Model: SF-AHD64DIRZ-2-ICR-V4
- Download Catalog
- Image Device: 1/3\" CMOS Color Omnivision OV4689
- DSP: Nextchip NVP2475
- Resolution: 4.0 Mega Pixels
- Effective Pixels: 2560(H) × 1440(V)
- Image System: PAL, NTSC
- Synchronization: Internal
- S/N: More than 48dB (AGC off)
- Mini. Illumination: Low 0.01LUX/F1.2 (AGC ON)
- Video Output: AHD output Selectable by OSD.
- Menu
- OSD Menu: OSD Cable optional, UTC Coaxial Control (via DVR) support
- BLC: OFF, HSBLC, BLC
- AGC: 0→15 Adjustable
- White Balance: ATW
- Brightness: 0→100 Adjustable
- Shutter: Auto, 1/25→1/50000, FLK
- Sharpness: ON(1→10), OFF, Auto
- D-WDR: ON(1→15), OFF, Auto
- Mirror: OFF, Mirror, V-Flip, Rotate
- Day & Night: EXT, B/W, COLOR, AUTO
- 2D-DNR: OFF, LOW, MIDDLE, HIGH
- Defect: DPC (Off, On)
- Language: Multi Languages
- Feature
- Max. IR LED Length: 2pcs Big Array IR LED, 20M, Smart IR
- Focal Length Lens: 3.6mm Mega Pixel fixed Lens
- Mount Type Lens: M12
- General
- Power Supply: DC12V ±10%
- Working Environment: -20℃～+50℃, Humidity 95% (No condensation)
- External Protection: IP66 Grade (waterproof IP66)
- Power Consumption: 160mA , Max 420mA ( IR on)
- Transmission Distance: Over 500m via 75±3Ω Coaxial cable
- Ingress Protection: Metal Dome
