Control Panel 8zone (AH-03312-8L)

Control Panel 8zone (AH-03312-8L)

  • Brand: HORING LIH INDUSTRIAL CO.,LTD
  • Country of Origin: Taiwan
  • Category: Fire Alarm Sytems, Control Panel
  • Model: AH-03312-8L‎
  • Download Catalog
  • Overview
  • Technical specification
Characteristics

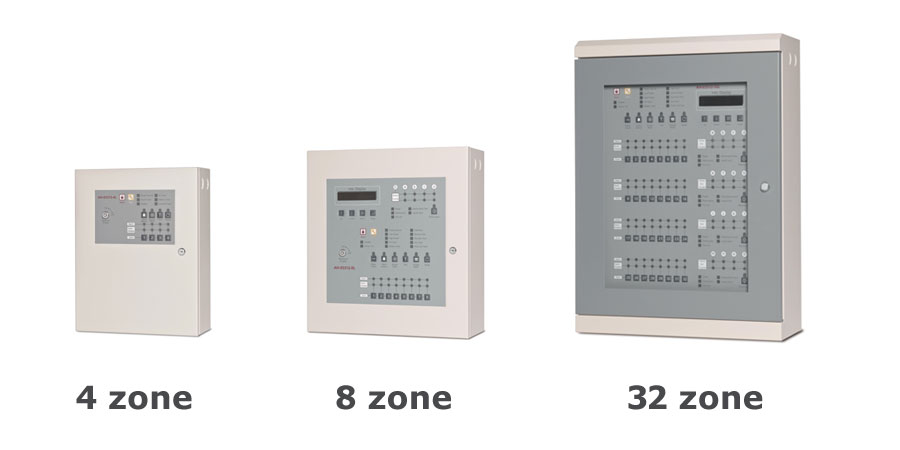

  • Model range from 1 to 32 zones.
  • AC power supply has EMI (Electromagnetic Interference).
  • Each zone has a separate disable function.
  • Double sets of sounder contacts.
  • Automatic telephone dialer feature.
  • Long-term or temporary silencing feature.
  • Protection against voltage spikes up to 2.5KV.
  • Microprocessor-base design.
  • Sounder short circuit or disconnection detection.
  • Fire Alarm NO, NC, COM and Fault NO, NC, COM output contact points.
  • Fire Relay Output contacts and Fault Relay Output contacts.
  • Switch membrane provides longer service and is waterproof, dust resistant and easy to clean.

Power Source

220V AC/50Hz *Others also available

Battery Capacity

24V / 7Ah

Max. Output Current

2A @24V DC

# of heat detector connected

No limit *Except electronic-type

# of smoke detector connected

30/zone *Horing Lih manufactured

Max. No. of Bells @25mA

40 per sounder circuit

End of Line Resistor

4.7kΩ *One per zone

Material

1.2mm steel plate

Color

Pearl gray *Others also available

Dimensions (mm) H x W x D

370 x 340 x 135

Optional Features

LCD display (2x20) with simple function keypad
