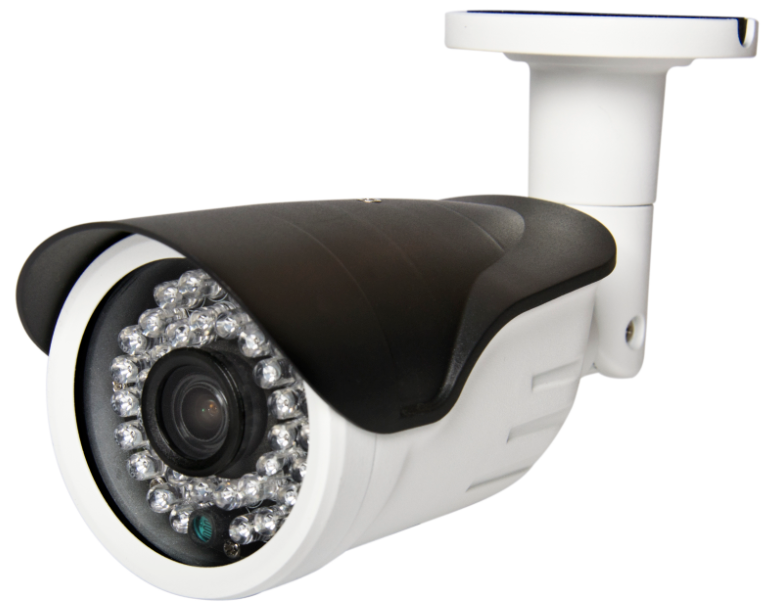

HYBRID, fixed lens 2.0MP (SF-FHD323Y-ICR-A5)

  • Brand: SHENZHEN SFCAM TECHNOLOGY CO.,LTD
  • Country of Origin: China
  • Category: Surveillance System, Bullet
  • Model: SF-FHD323Y-ICR-A5
  • Download Catalog
  • Overview
  • Technical specification
  • 2.0MP HYBRID CAMERA
  • Adopt 2.0 megapixels CMOS sensor
  • Support 4 in 1: AHD, TVI, CVI, CVBS signal output
  • Support control OSD menu via Coax
  • Support over 500 meters coaxial cable transmission
  • Support day and night mode switch

  • Sensor: 1/2.7\" 2.0MP CMOS Aptina  AR0237CS
  • DSP: Fullhan FH8536
  • Effective Pixel: 1920H*1080V, 2.0MP
  • Output signal: 4 in 1: AHD, TVI, CVI, CVBS
  • IR LED: 36pcs IR LED, IR Range: 25M, with IR CUT
  • Lens: HD 3.6MM fixed lens
  • Min illumination: Low 0.01LUX / F1.2(AGC ON) Color, 0Lux IR on
  • SNR: ≥48DB (AGC off)
  • White Balance: MWB, ATW
  • Exposure: Globe, Center, BLC, FLC
  • Gain: 1~8 adjustable
  • Color Gain: 1~20 adjustable
  • AGC: 1~8 adjustable
  • Brightness: 1~20 adjustable
  • Sharpness: 1~20 adjustable
  • D-WDR: OFF/ON
  • Contrast: 1~50 adjustable
  • Day & Night: EXT/(B/W)/COLOR/AUTO
  • DNR: 1~15 adjustable
  • Transmission Distance: Support over 500 meters coaxial cable
  • Waterproof: IP66
  • Power: DC12V±10%
