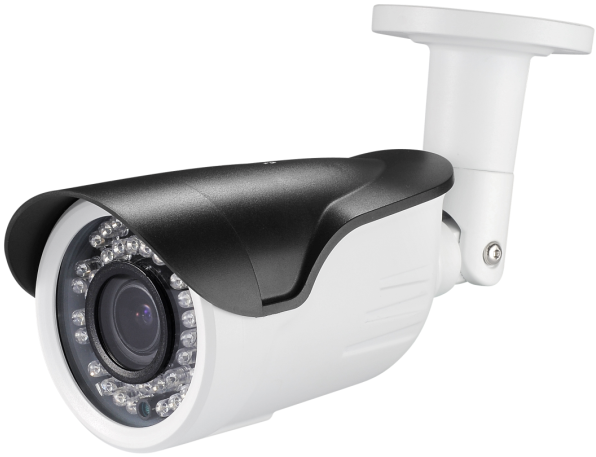

HYBRID, VF lens 2.0MP (SF-AHC324Y-ICR-S6)

HYBRID, VF lens 2.0MP (SF-AHC324Y-ICR-S6)

  • Brand: SHENZHEN SFCAM TECHNOLOGY CO.,LTD
  • Country of Origin: China
  • Category: Surveillance System, Bullet
  • Model: SF-AHC324Y-ICR-S6
  • Download Catalog
  • Overview
  • Technical specification
  • 2.0MP HYPRID CAMERA
  • Adopt 2.0 megapixels CMOS sensor
  • Support 4 in 1: AHD, TVI, CVI, CVBS Signal output
  • Support control OSD menu via Coax
  • Support over 500 meters coaxial cable transmission
  • Support day and night mode switch
  • Image Device: 1/2.9\" CMOS SONY Exmor IMX323LQN
  • DSP: Nextchip NVP2441
  • Resolution: 2.0 Mega Pixels
  • Effective Pixels: 1920(H) × 1080(V)
  • Image System: PAL, NTSC
  • Synchronization: Internal
  • S/N: More than 50dB (AGC off)
  • Mini. Illumination: Low 0.01LUX/F1.2 (AGC ON)
  • Video Output: 4 in 1: AHD, TVI, CVI, CVBS output Selectable by OSD.
  • Menu
  • OSD Menu: OSD Cable optional, UTC Coaxial Control (via DVR) support
  • IRIS Lens: Manual/DC: indoor, outdoor (1/25 ~ 1/50000)
  • BLC: OFF, HSBLC, BLC
  • AGC: 0→15 Adjustable
  • White Balance: ATW, AWC-SET, Indoor, Outdoor, Manual, AWB
  • Brightness: 0→100 Adjustable
  • Shutter: Auto, 1/25→1/50000, FLK, X2→X30
  • Sharpness: Auto(0→10), Off
  • DEFOG: OFF, AUTO
  • D-WDR: ON(1→8), OFF, Auto
  • Mirror: OFF, Mirror, V-Flip, Rotate
  • Day & Night: EXT, B/W, COLOR, AUTO
  • 3D/2D-DNR: OFF, LOW, MIDDLE, HIGH
  • SENSE-UP: Auto(X2→X30), OFF
  • Camera Title: Off, On
  • Motion: OFF, ON(4 AREAS)
  • Privacy: OFF, ON(4 AREAS)
  • Defect: DPC (Off, On)
  • Monitor: CRT, LCD
  • LSC: Off, On
  • Language: Multi Languages
  • Feature
  • Max. IR LED Length: 42pcs IR LED, 30M, Smart IR
  • Focal Length Lens: 2.8-12mm Mega Pixel Vari-focal lens
  • Mount Type Lens: M14
  • General
  • Power Supply: DC12V ±10%
  • Working Environment: -20℃～+50℃, Humidity 95% (No condensation)
  • External Protection: IP66 Grade (waterproof IP66)
  • Power Consumption: 160mA , Max 530mA ( IR on)
  • Transmission Distance: Over 500m via 75±3Ω Coaxial cable
  • Ingress Protection: Metal Bullet
