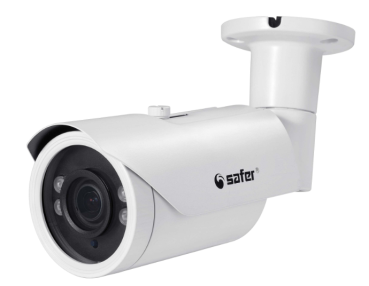

HYBRID, VF lens 4.0MP (SF-FHD349JZ-6-ICR-V4‎)

  • Brand: SHENZHEN SFCAM TECHNOLOGY CO.,LTD
  • Country of Origin: China
  • Category: Surveillance System, Bullet
  • Model: SF-FHD349JZ-6-ICR-V4
  • Download Catalog
  • Overview
  • Technical specification
  • 4.0MP HYPRID CAMERA
  • Adopt 4.0 megapixels CMOS sensor
  • Support 4 in 1: AHD, TVI, CVI, CVBS Signal output
  • Support control OSD menu via Coax
  • Support over 500 meters coaxial cable transmission
  • Support day and night mode switch
  • Image Device: 1/3\" CMOS Color Omnivision OV4689
  • DSP: Fullhan FH8538M
  • Resolution: 4.0 Mega Pixels
  • Effective Pixels: 2560(H) × 1440(V)
  • Image System: PAL, NTSC
  • Synchronization: Internal
  • S/N: More than 48dB (AGC off)
  • Mini. Illumination: Low 0.01LUX/F1.2 (AGC ON)
  • Video Output: 4 in 1: AHD, TVI, CVI, CVBS output Selectable by OSD.
  • Menu
  • OSD Menu: OSD Cable optional, UTC Coaxial Control (via DVR) support
  • IRIS Lens: Manual/DC: indoor, outdoor (1/25 ~ 1/50000)
  • BLC: 1 → 9 Adjustable
  • AGC: Auto
  • White Balance: ATW – MWB (Red Gain 1→128 / Blue Gain 1→128) Adjustable
  • Brightness: 1→20 Adjustable
  • Shutter: 1/25-50,000 Sec
  • Sharpness: 1→16 Adjustable
  • D-WDR: ON, OFF
  • Mirror: H / V / HV
  • Day & Night: EXT, B/W, COLOR, AUTO
  • 2D-DNR: 1→16 Adjustable
  • Language: Multi Languages
  • Feature
  • Max. IR LED Length: 6pcs Array IR LED, 40M, Smart IR
  • Focal Length Lens: 2.8-12mm Mega Pixel Vari-focal lens
  • Mount Type Lens: M14
  • General
  • Power Supply: DC12V ±10%
  • Working Environment: -20℃～+50℃, Humidity 95% (No condensation)
  • External Protection: IP66 Grade (waterproof IP66)
  • Power Consumption: 160mA , Max 530mA ( IR on)
  • Transmission Distance: Over 500m via 75±3Ω Coaxial cable
  • Ingress Protection: Metal Bullet
