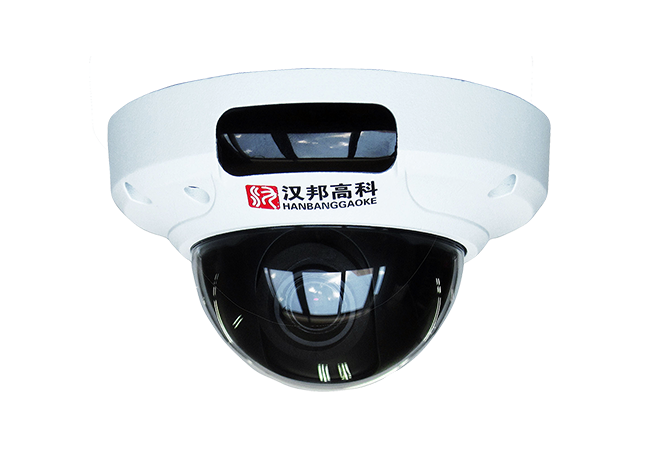

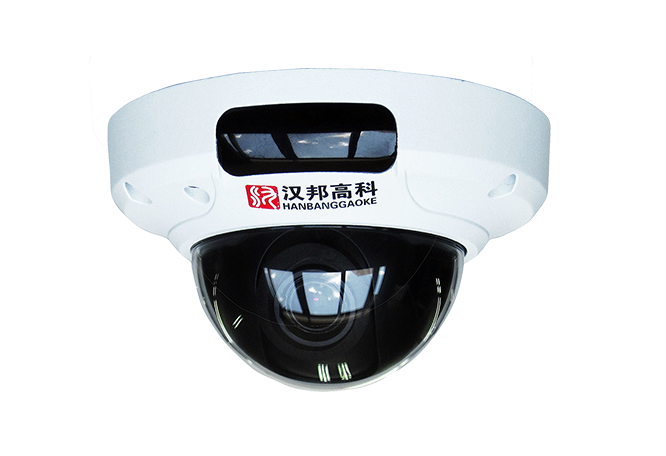

IP, fixed lens 4.0MP (HW-IPC274)

IP, fixed lens 4.0MP (HW-IPC274)

  • Brand: NANFANG HANBANG TECHNOLOGY CO., LTD
  • Country of Origin: China
  • Category: Surveillance System, Dome
  • Model: HW-IPC274
  • Download Catalog
  • Overview
  • Technical specification
  • 4.0MP IP Camera
  • Adopt 4.0 megapixels CMOS sensor
  • Effective Pixel: 2560H x 1440V, 4.0MP
  • IR LED: 2pcs Array IR LEDs, 10M IR Range
  • Lens: HD 4.0mm Fixed Lens
  • Video Compression: 264, H.265
  • Main Stream: (128Kbps → 8000Kbps)@30FPS
  • Sub Stream: (128Kbps → 4000Kbps)@30FPS
  • Audio compression: 771A
  • Min illumination: Low 0.01LUX/ F1.2(AGC ON) Color, 0Lux IR on
  • Sensor WDR: D-WDR
  • DNR: 2D & 3D.
  • Day & Night: AUTO / Day mode / Night mode.
  • Setting image: Sharpness, Saturation, Brightness, Contrast, RIO, Video Blind, Privacy Mask, Motion Detection
  • POE: Internal POE (IEEE802.3af)
  • Protocols: TCP, UDP, RTSP, HTTP, DHCP
  • Interface Protocols: Onvif (Profile S, Profile G), CGI, RTSP, RTMP
  • Alarm Trigger: Motion Detection
  • Network: RJ45 10/100Mbps adaptive Ethernet port
  • Waterproof: IP66
  • Power: DC12V±10%
