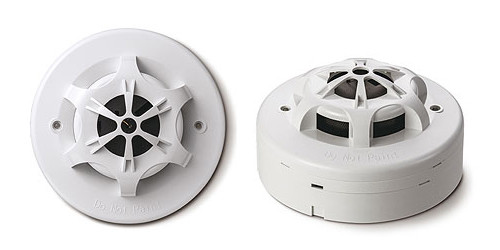

Smoke and Heat Detector (AH-0715-3M)

Smoke and Heat Detector (AH-0715-3M)

  • Brand: HORING LIH INDUSTRIAL CO.,LTD
  • Country of Origin: Taiwan
  • Category: Fire Alarm Sytems, Detectors
  • Model: AH-0715-3M
  • Download Catalog
  • Overview
  • Technical specification
Characteristics
  • Magnetic test feature makes maintenance easy and simple.
  • Twin-color LED display enables viewer to easily identify the current status of detector.
  • The standard detector is 2-wire or 3-wire. For 4-wire type just add one relay output module on 3-wire base. Simple and easy module placement enables wider application and flexible stock control.
  • Detector is made of high endurance, solid and colorfast Fire-proof plastic.
  • Non-loosening screws on base terminal for easy installation.
  • Detector has passed strict EMC test, which greatly eliminates false alarms caused by interference from nearby sources.

Alarm Contact

N/A

Voltage Range

12 ~ 30V DC

Alarm Current @ 24V DC 470Ω

40mA

Standby Current @ 24V DC 470Ω

35 ~ 85μA

Sensitivity Setting

Comply to EN54

Ambient Temperature

-10oC ~ +55oC

Material

Fire-proof plastic

Dimensions (mm) Dia. x H

102 x 54

Weight

130g

Color

White
