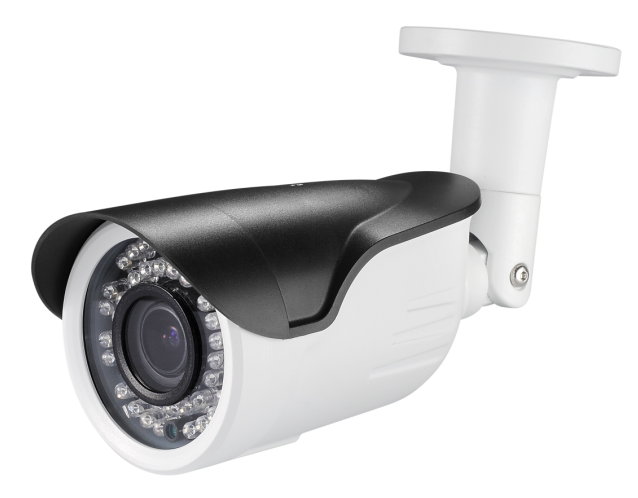

Starlight, Optical Motorized 2.0MP (SF-AHC324Y-ICR-S4-AF)

Image Device: 1/2.8\" CMOS SONY, STAVIS Exmor IMX291LQR Starlight
DSP: Nextchip NVP2441H
Resolution: 2.0 Mega Pixels
Effective Pixels: 1920(H) × 1080(V)
Image System: PAL, NTSC
Synchronization: Internal
S/N: More than 50dB (AGC off)
Mini. Illumination: Super Low 0.008LUX/F1.4(AGC ON) Color, 0Lux IR on
Video Output: 4 in 1: AHD, TVI, CVI, CVBS output Selectable by OSD.
Menu
OSD Menu: OSD Cable optional, UTC Coaxial Control (via DVR) support
IRIS Lens: Manual/DC: indoor, outdoor (1/25 ~ 1/50000)
BLC: OFF, HSBLC, BLC
AGC: 0→15 Adjustable
White Balance: ATW, AWC-SET, Indoor, Outdoor, Manual, AWB
Brightness: 0→100 Adjustable
Shutter: Auto, 1/25→1/50000, FLK, X2→X30
Sharpness: Auto(0→10), Off
DEFOG: OFF, AUTO
D-WDR: ON(1→8), OFF, Auto
Mirror: OFF, Mirror, V-Flip, Rotate
Day & Night: EXT, B/W, COLOR, AUTO
3D/2D-DNR: OFF, LOW, MIDDLE, HIGH
SENSE-UP: Auto(X2→X30), OFF
Camera Title: Off, On
Motion: OFF, ON(4 AREAS)
Privacy: OFF, ON(4 AREAS)
Defect: DPC (Off, On)
Monitor: CRT, LCD
LSC: Off, On
AF mode: Auto, Manual, Semi
Language: Multi Languages
Feature
Max. IR LED Length: 42pcs IR LED, 30M , Smart IR
Focal Length Lens: 2.8-12mm Mega Pixel 4X Optical Zoom Motorized Lens
Mount Type Lens: M14
General
Power Supply: DC12V ±10%
Working Environment: -20℃～+50℃, Humidity 95% (No condensation)
External Protection: IP66 Grade (waterproof IP66)
Power Consumption: 160mA , Max 530mA ( IR on)
Transmission Distance: Over 500m via 75±3Ω Coaxial cable
Ingress Protection: Metal Bullet
