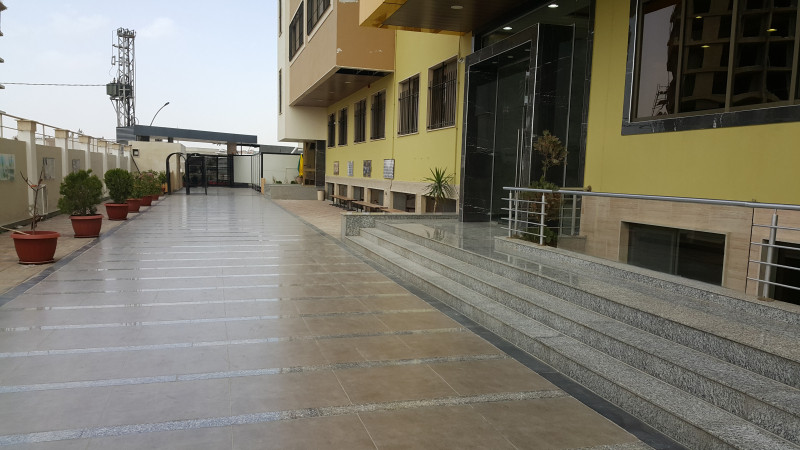

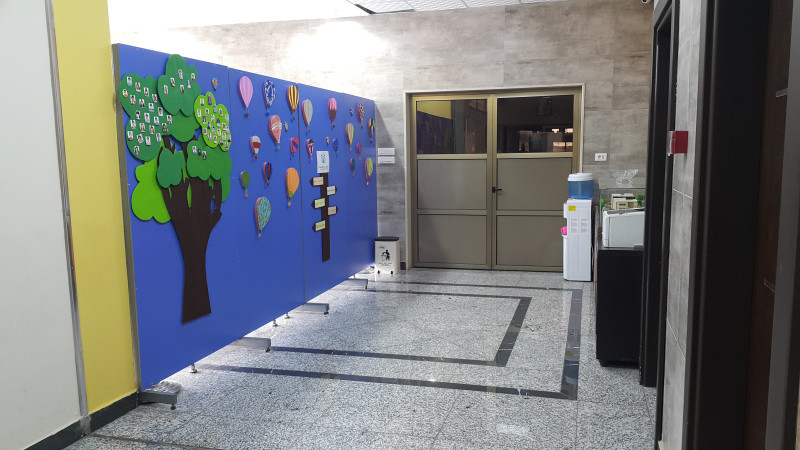

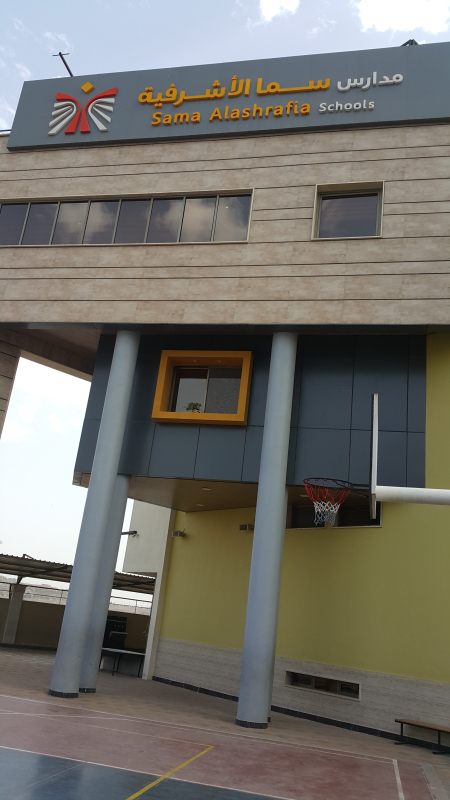

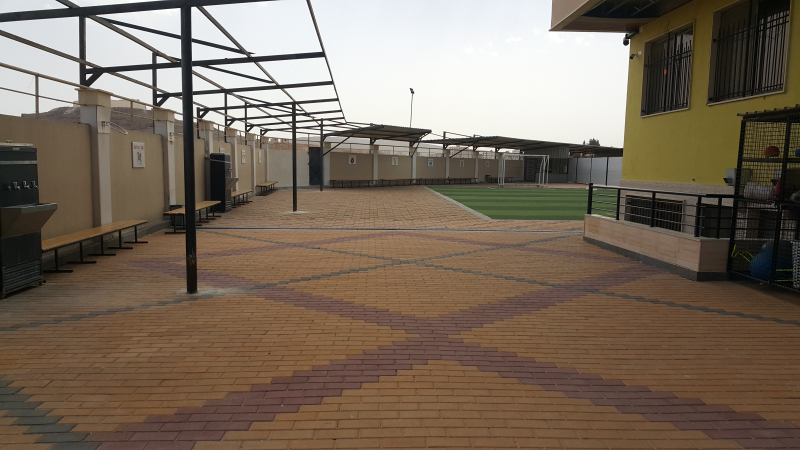

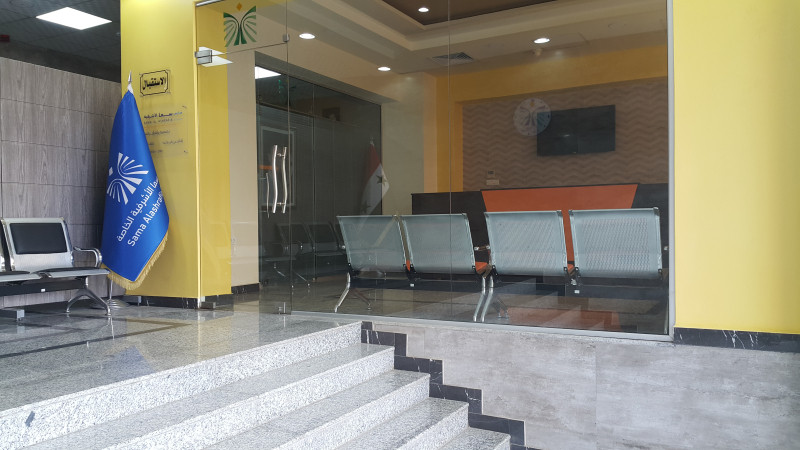

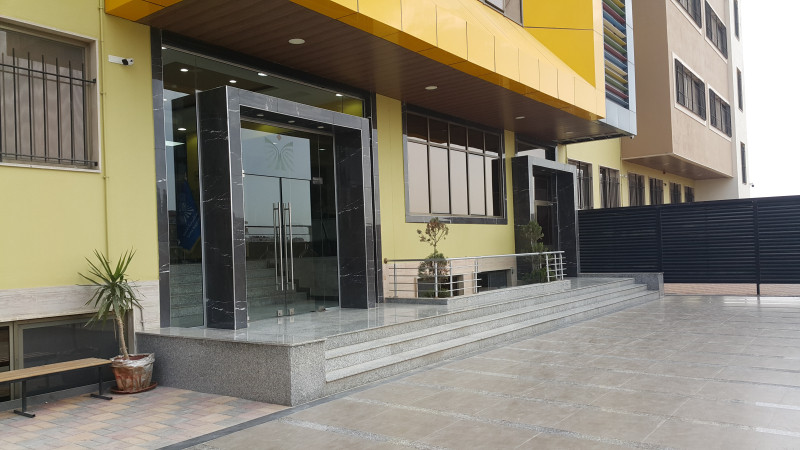

Sama Alashrafia Schools is a private schools group for all educational levels, offering a distinguished standard. It covers an area of ​​approximately 6,000M² and includes a five floors building with a floor area of ​​approximately 2,000M². It is located in the countryside near Damascus, approximately 8 km from the city center.

Works Implemented by Us:

Study, Supply, Installation, and Operation of the Following Systems: CCTV Surveillance System - PBX Telephone System - Fire Alarm System - WIFI and Computer Network - Central UPS - Sound and Public Address System.

Key Components of the Project:

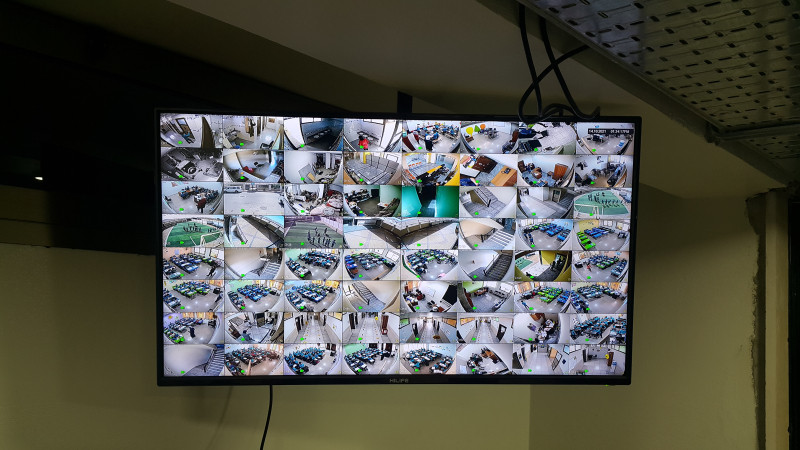

·        CCTV Surveillance System from Longse Technology Co. Ltd.

Consisting of 210 IP cameras 5.0MP with audio and 5X motorized lens, supporting POE model (LBP605XSS50 + LIRDNT5XSS500), in addition to three IP PTZ cameras 2.0MP with 22X lens model PT5A022SL200.

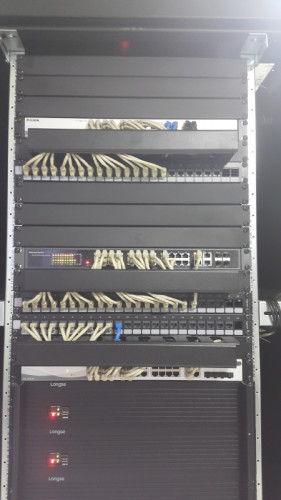

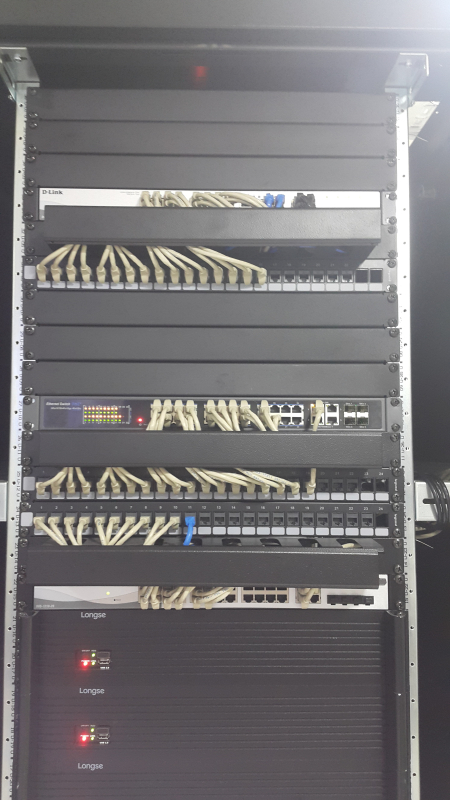

Four NVRs model NVR3664L, each one with a capacity of 64 IP cameras and a maximum recording resolution of 12.0MP, containing a total storage capacity of 36TB.

Ten switches 24-ports, supporting POE.

Passive components, including outlets, cables, cabinets, patch panels, and patch cords from Legrand.

·        PBX Telephone.

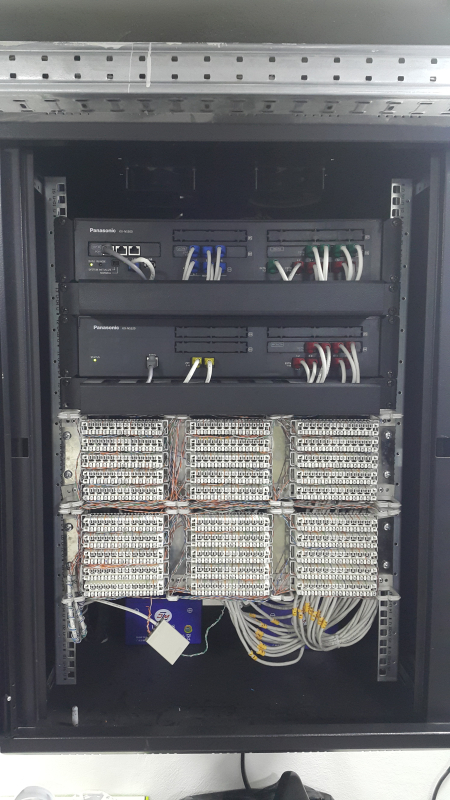

A PBX Panasonic KX-NS500 VoIP, with a capacity of 12 CO lines + 10 DLI digital extension lines + 88 SLI single extension lines, with accessories including IP, digital, and single phones, as well as passive components such as outlet, cables, cabinets, and patch panels from Legrand.

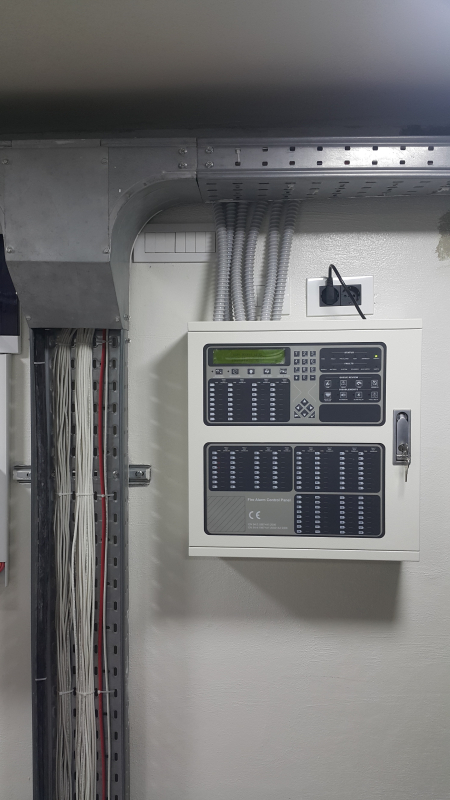

·        Fire Alarm System.

Addressable fire alarm system from Ambest Electronics CO., LTD (NUMENS) consisting of:

An addressable fire control panel with 4 loops capacity, model 6002-01, expandable.

167 addressable smoke detectors, model SNA-360-S2.

12 addressable smoke and heat detectors, model SNA-360-C2.

8 addressable heat detectors, model HNA-360-H2.

25 addressable manual call point, model 660-001.

30 addressable fire alarm sounders, model 640-004.

An repeater panel, model 6002-06.

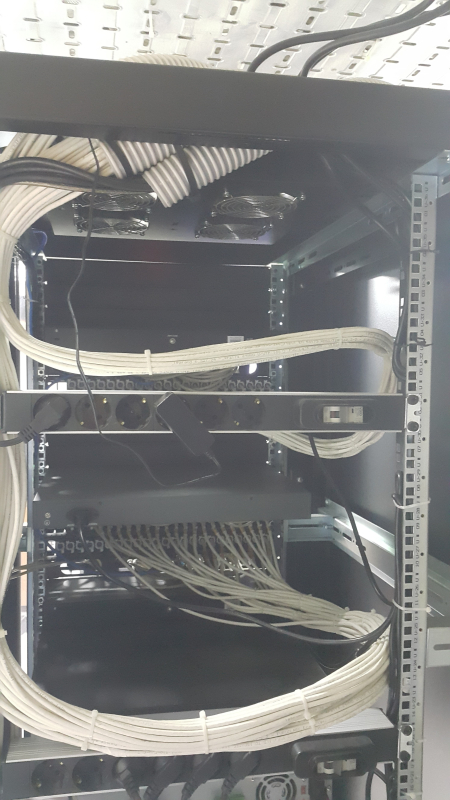

·        WIFI and Computer network.

Active components: D-Link network switches and MIKROTEC network router.

Passive components: outlet, cables, cabinets, patch panels and patch cords from Legrand.

·        Central UPS.

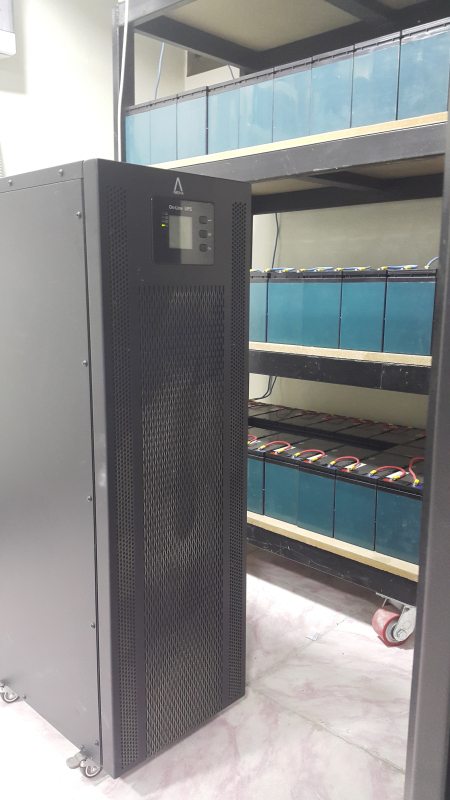

True Online UPS (3-Phase Input-Output) from Aroma Co., model 33Q60KL, 60KVA, plus a power bank consisting of 80 sealed, maintenance-free AGM batteries with 38.4KW total capacity.

·         Sound and public address System

-      Theater Sound System:

GIGRAC 1000ST mixer and amplifier from Sound Craft.

IX12H loudspeaker from INTER-M.

RU-8011DB/RU-850LTH + GM-5212SW microphones from JTS.

CMP30 multi-format audio player from AUDAC.

-      Public address System:

Amplifier model DPA-300Q from INTER-M.

Matrix model EF-804 from EUROSHINE.

Speaker models CSL-613 + CS-122 + HS-45S from EUROSHINE.

UHF microphone model LDWS1000HHCK from ADAM Hall.

4-zones master control microphone model EM-4 from EUROSHINE.

GM-5212SW microphone with ST-5030I table base from JTS.

VP-1 zone control wall panels (MIC+AUX) from EUROSHINE.

                CMP30 multi-format audio player from AUDAC.
